[ Roof ] -1. Tile Roof Mounting Kits

Tile roof mounting kits

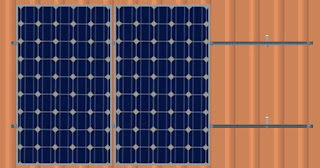

Newsunpower Tile Roof Racking System is designed to provide the possible maximum flexibility for the commercial and residential roof solar system.

It is applicable to install the usual framed module to flush with various tile roofs.The special extruded aluminum rail, the tilt-in module, the clamp kit and the various tile roof hooks can be highly pre-assembled and make the installation easier and quicker to save your labor cost and time.The customized length can eliminate the weld and can be cut on-site to keep high anti-corrosive performance, enhance structure strength and refine the appearance.





Technical Information

Install site: Pitched Roof
Tilt Angle: Flushed with the roof (10~60 deg)
Building Height: 20 m
Max Wind Speed: ≤60m/s
Snow Load: ≤1.4KN/m2
Standards: AS/NZS 1170 and other international Standard
Material: High Class Aluminum alloy AL6005-T5& Stainless steel 304
Color: Natural or Customized
Anticorrosive: anodized aluminum & stainless steel
Warranty: 10 years warranty and 25 years long lifespan.

Specifications List
