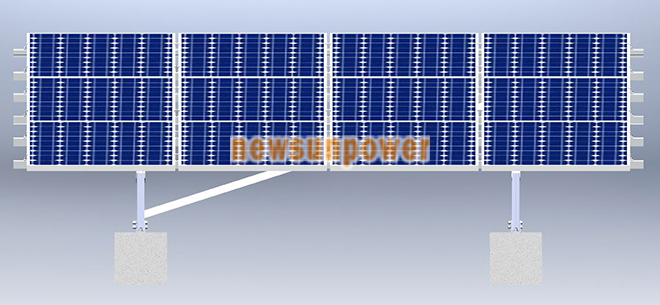

Aluminum Ground Mounting Solutions

Newsunpower aluminum mounting ground solutions provide solar mounting systems made of 100% high class anodized aluminum 6005-T5 to be installed on both concrete foundations and ground screw foundations. All the aluminums have been anodized with a thickness on the surface to reach high anti-corrosive for using outdoor. It is light and strong, graceful and smart.

Technical Information

Installation Sites: Open Ground/Field

Foundation Solutions: Concrete Foundation

Installation Angles: 5°-60°

Wind Load: ≤60m/s

Snow Load: ≤1.4KN/㎡

Module Orientation: Landscape/Portrait

Design Standards: JIS C 8955:2011, AS/NZS 1170, DIN 1055, IBC 2009

System Main Material: High Class Anodized Aluminum 6005-T5

Components Material: High Class Anodized Aluminum 6005-T5

Fasteners Material: Stainless Steel SUS 304

Warranty: 10 years warranty, 20-25 years service life.

Specifications List

Al Front Leg         Al Rear Leg

Al Longitudinal Beam           Al Diagonal Draw Bar                Al Front Leg Base

Al Rear Leg Base Al Rectangle Rail Al Rectangle Rail Clamp Kit

AI End clamp kit AI Inner clamp kit            AI Rear diagonal tension brace

                                       M12X90 Bolt set              M14X4 0 Bolt set
